High quality Multi-jet Dry Water Meter

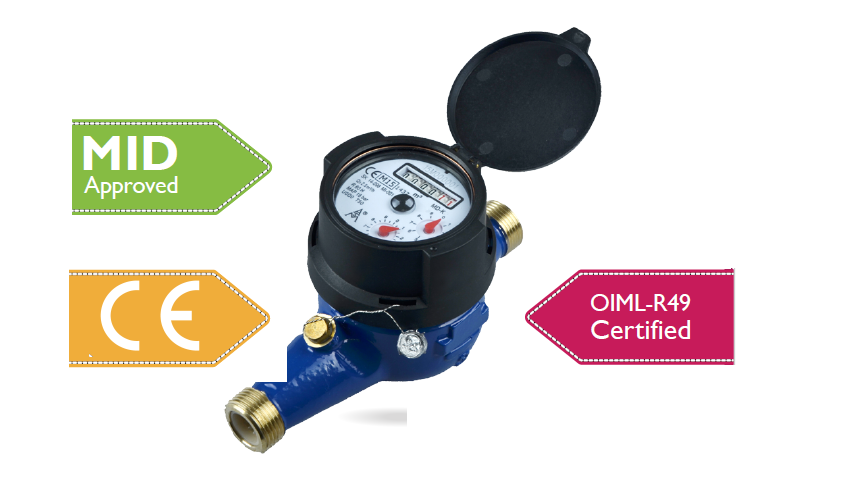

Multi-jet Dry Type Vane Wheel Water Meter
· It is a multi-jet super dry water meter for residential application in sizes15mm for cold water.
Features
· Compact design with smaller meter body.
· Copper-can sealed dry register, IP68, 360°rotatable
· Magnetic drive mechanism with anti-magnetic protection
· External regulating device
Standards Compliance
· Directive 2014/32/EU on measuring instruments;
· the European Standard EN14154+A1+A2: Water Meter;
· the International Organization of Legal Metrology OIML R-49: 2013(E)
Optional Features
· Several lengths and connections available on request
· Non return Valve
· Reed switch option
Working Conditions
· Water temperature: ≤50? for cold water meter
· Water pressure : PN ≤1.6MPa(16bars)
Accessories
· 2pcs couplings, 2pcs coupling nuts and 2pcs washers.

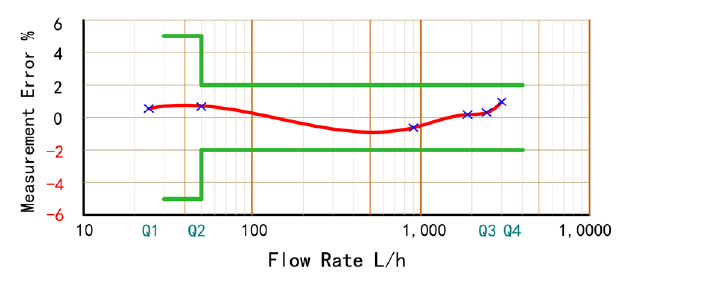

Maximum Permissible Error
· In the lower zone from Q1 inclusive up to but excluding Q2 is ±5%.
· In the upper zone from Q2 inclusive up to and including Q4 is ±2%.

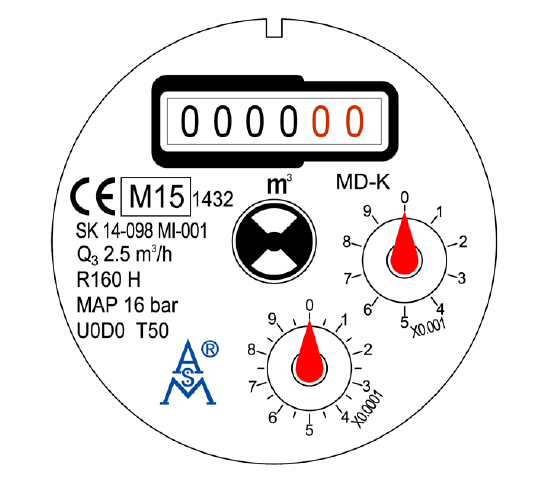

Meter Dial Plate(DN15,R160)

Dimension

Certification
